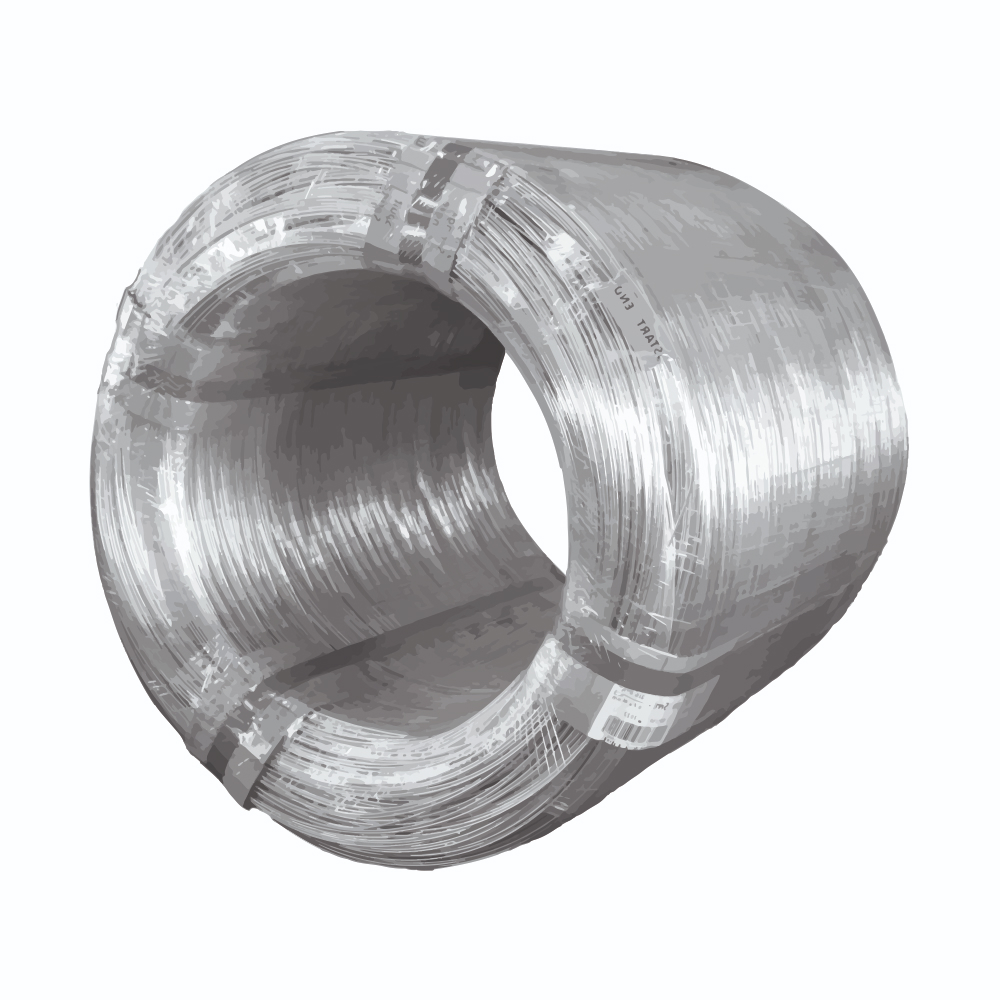

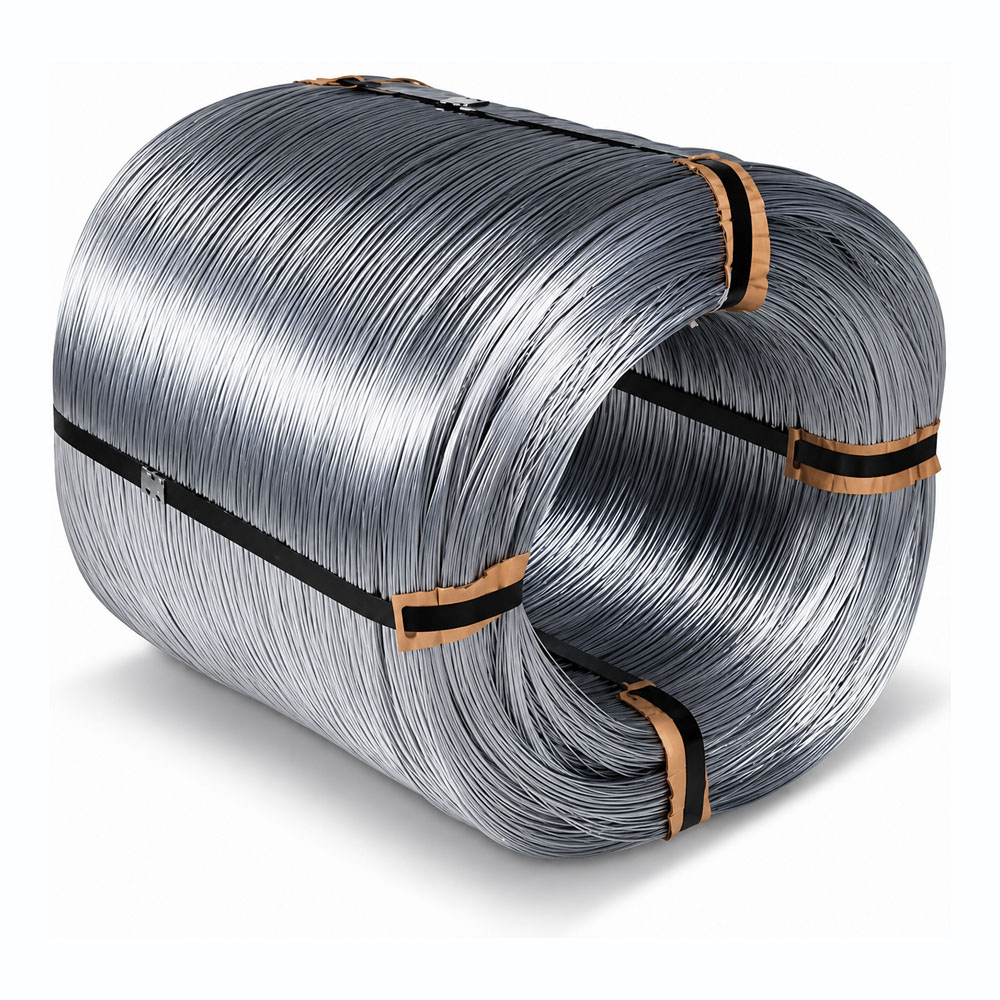

HOT DIP GALVANIZED WIRES
| Materials: | Low/ High carbon steel wires |
|---|---|
| Coating Thickness: | 40 - 600 g/mm² |
| Wire Diameter: | 0.80 - 6.00 mm |
| Tensile Strength: | Low Tensile 340 - 550 MPa | Medium Tensile 600-900 MPa | High Tensile 900 - 2400 MPa |
| Coil Weight: | 200 - 1200 kgs |
| Packaging: | Rosette coils, Metal Basket, Palletized Coils |
| Standards: | BS EN 10244 - 2 | 10257 - 1 | 10218-2, 50189, ASTM 641M | B498 - B498M IS 3975: 1999 | 4826:1979, IEC 63248 |
| Area of use: | Cable Armoring, Power Transmission cable, Subsea Cables, Industrial Applications, Production of wire netting, Barbed wires, Security panels, PVC coated wires, Wire mesh, Cages, Bucket handles and Nails. |

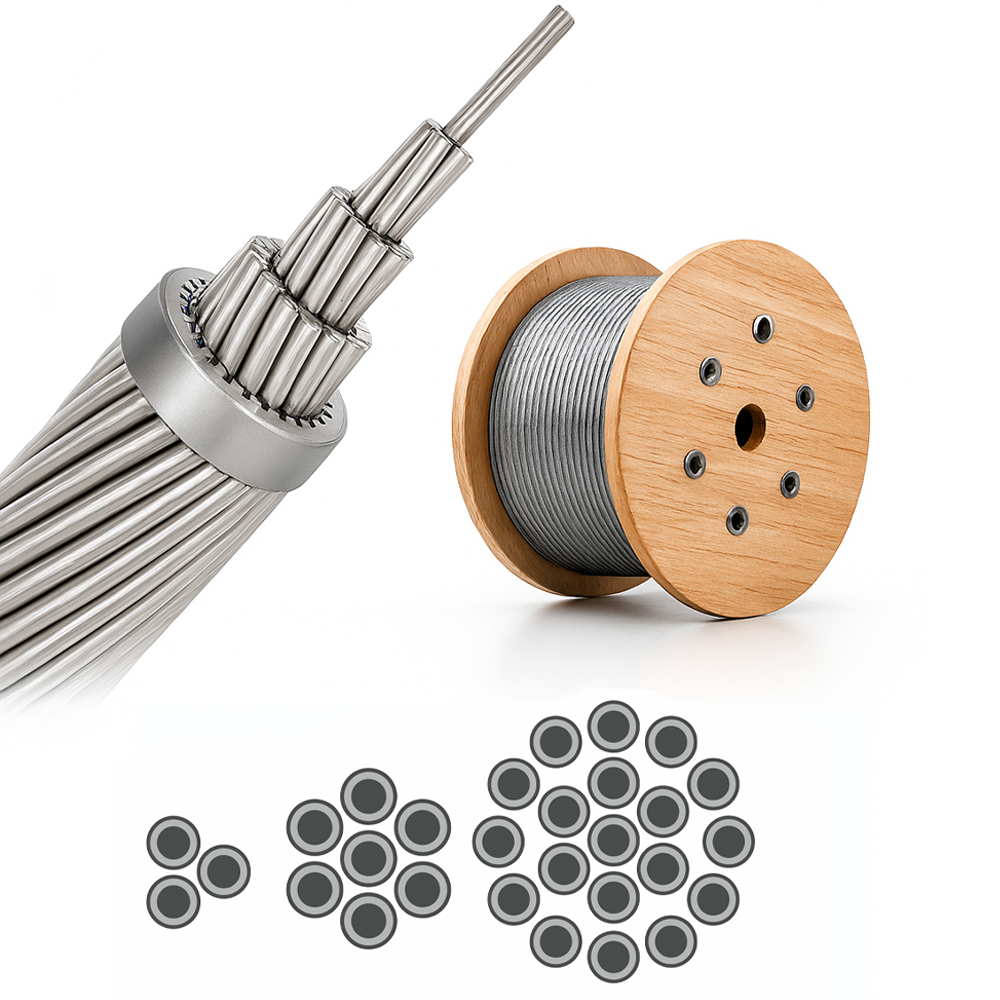

ALUMINIUM CLAD STEEL WIRE & STRANDS
| Materials: | High Carbon Steel Wires |
|---|---|
| Aluminum Thickness: | As per customer requirements |
| Wire Dia: | 1.50 - 4.77 mm |
| Strand Dia: | 22.5 mm max |
| Strand Construction: | 3 wires, 7 wires (1+ 6), 19 wires (1+ 6 + 12) |
| Tensile Strength: | 650 - 1620 MPa |
| Conductivity: | 14%, 20.3%, 23%, 27%, 30%, 40% |
| Single core Packaging: | 400 - 2000 kgs in Wooden Bobbins |
| Strand Packaging: | 500 - 3000 kgs in Wooden Bobbins, Customized lengths |
| Standard: | IEC 63248 | 61232, ASTM B502 | 502M |
| Area of use: | Reinforced Cables, Power Transmission Lines, Telecommunications, Overhead Conductors, Ground Wire, Fencing & Barbed wire. |

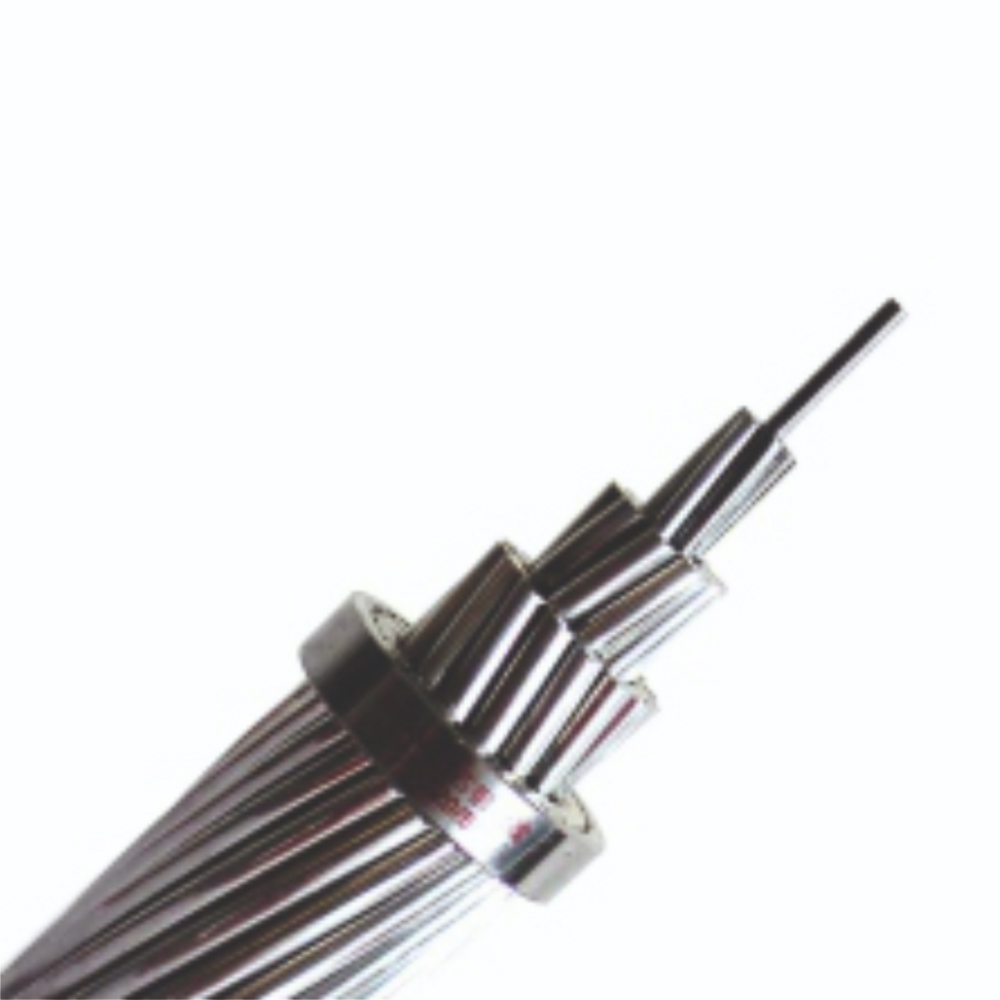

ACSR CORE WIRE & STRANDS
| Materials: | High Carbon Steel Wires |
|---|---|
| Coating Thickness: | 40 - 600 g/m² |
| Wire Dia: | 1.50 to 4.50 mm |
| Strand Dia: | 22.5 mm max |
| Strand Construction: | 3 wires, 7 wires (1+6), 19 wires (1+6+12) |
| Tensile Strength: | 650 - 2400 MPa |
| Single core Packaging: | 400 - 800 kg (coil weight) in Rosette & Palletized coils, Metal Baskets |
| Strand Packaging: | Wooden bobbins, Customized lengths |
| Standard: | ASTM B 498 and BS 50189 with combination of zinc coating & grades are ST1A, ST2B, ST3D & ST4A, ST5E & ST6C. |
| Area of use: | Power Transmission Lines, Distribution Lines, Telecommunications |

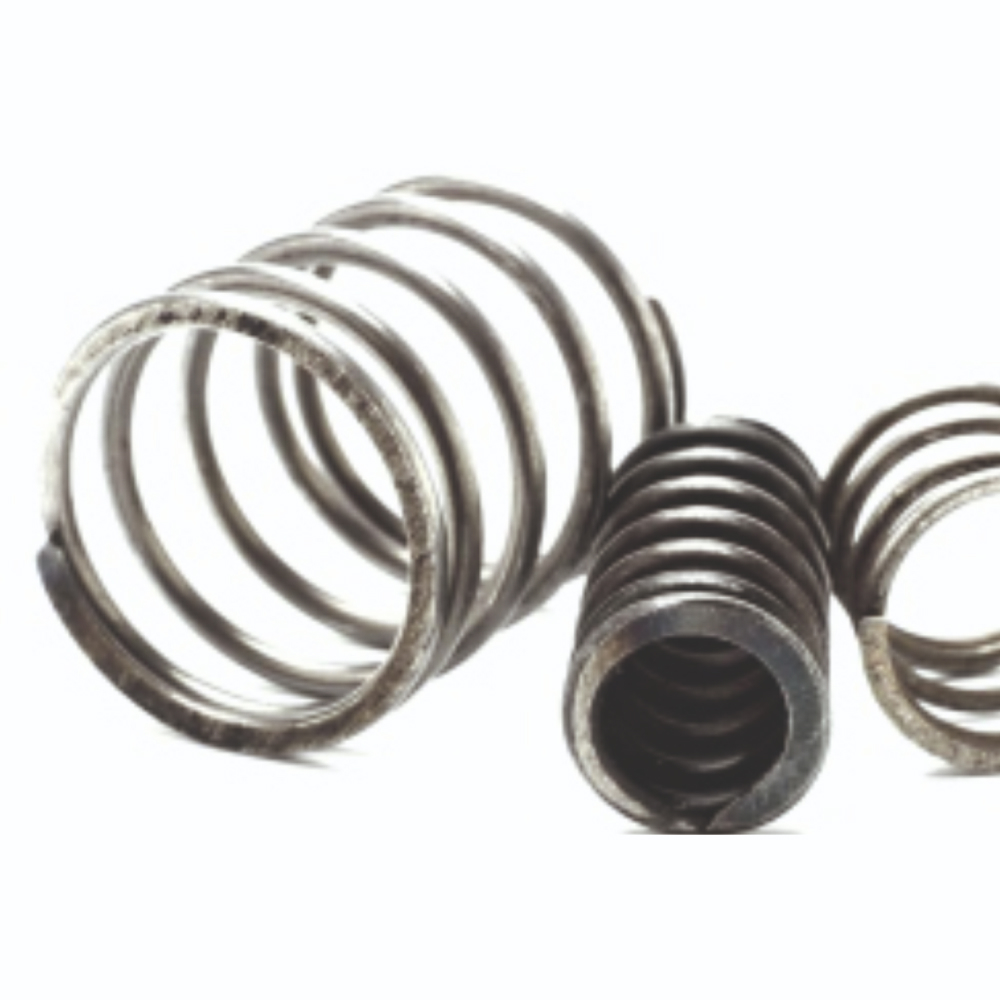

SPRING WIRES
| Materials: | High Carbon Steel Wires |
|---|---|
| Coating: | Phosphated |
| Wire Dia: | 1.40 - 3.00 mm |
| Tensile Strength: | Up to 2200 MPa |
| Coil Weight: | 200 - 600 Kgs |
| Standard: | BS EN 10270 - 1, ASTM A228 |
| Area of use: | Used in Various Industries ranging from Automotive to Mattresses |

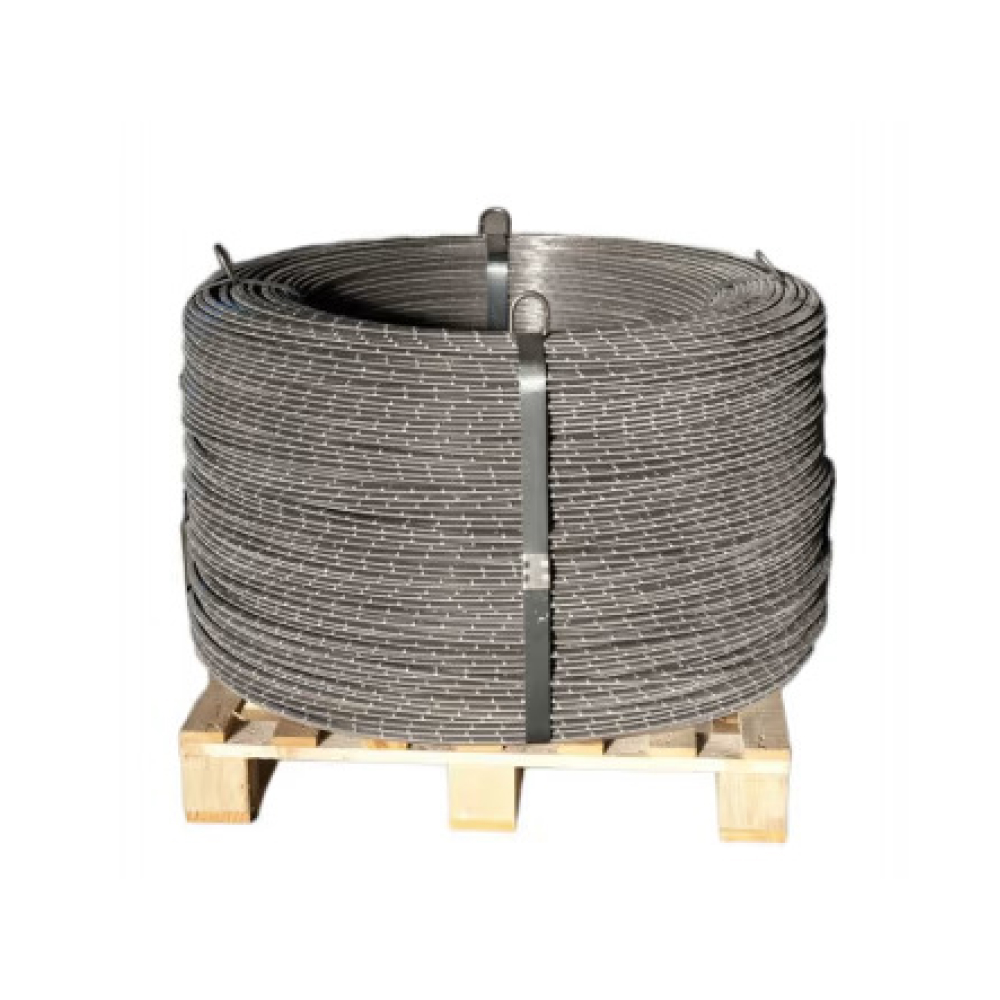

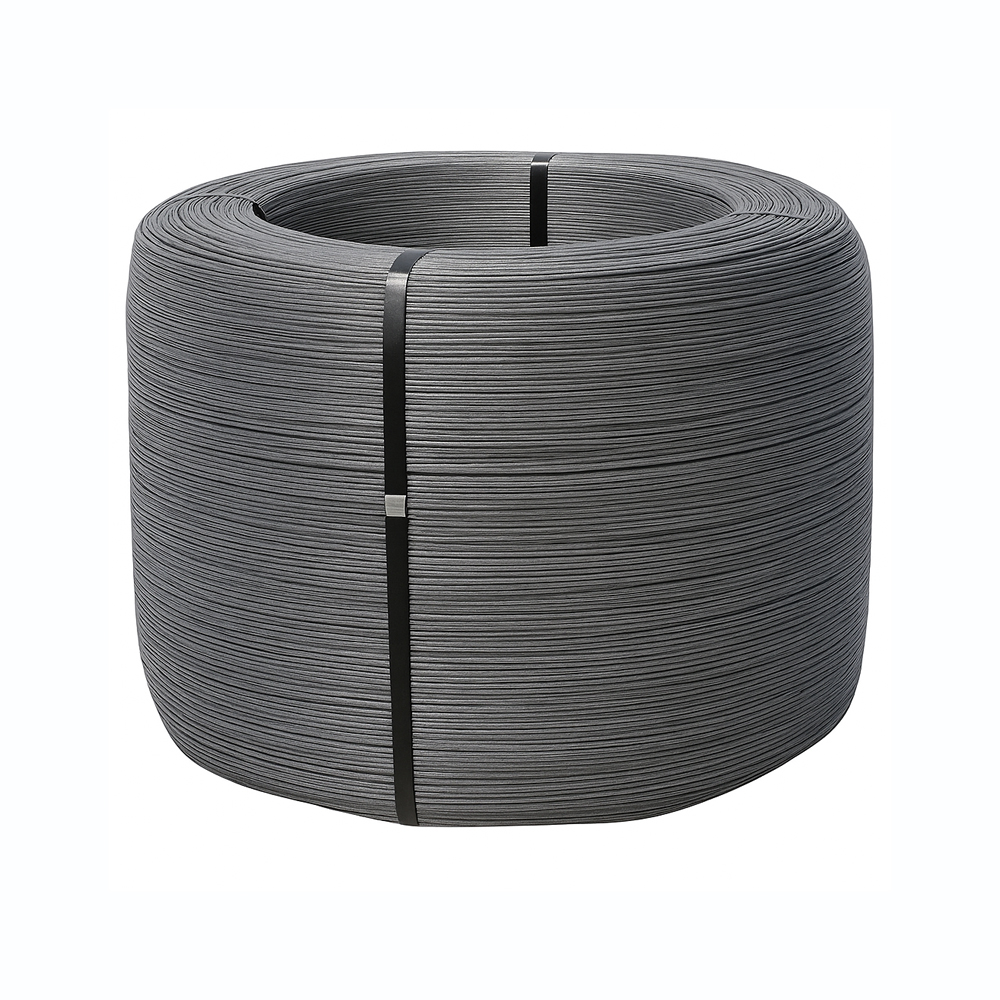

COLD DRAWN STEEL WIRES
| Materials: | Low/ High carbon steel wire |
|---|---|
| Wire Diameter: | 0.90 - 5.00 mm |
| Tensile Strength: | 500 - 2400 MPa |
| Coil Weight: | 200 - 600 kgs |
| Packaging: | Rosette Coils |
| Area of Use: | Production of nails, staples, mesh, binding wires and various engineering applications. |

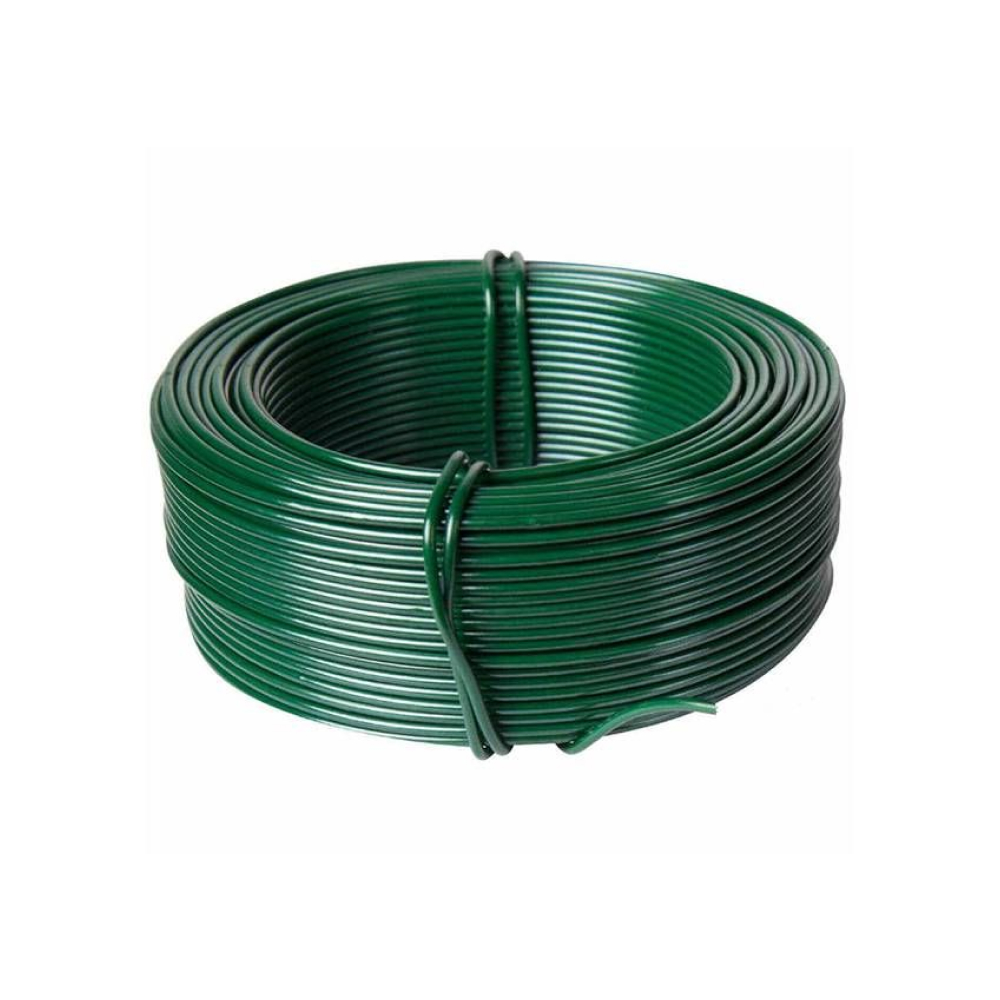

PVC COATED WIRES
| Material: | Low carbon steel Wire PVC Wire |
|---|---|
| Diameter: | 2.30 - 4.50 mm |
| PVC Coating Colors: | All Standard RAL Colors |
| Tensile Strength: | 350 - 650 N/MPa (Core wire) |
| Coil Weight: | 200 - 600 kgs |
| Packaging: | Rosette Coils |
| Standards: | BS EN 10218 - 2 | ASTM F668 |
| Area of Use: | Production of Fence and Hangers |

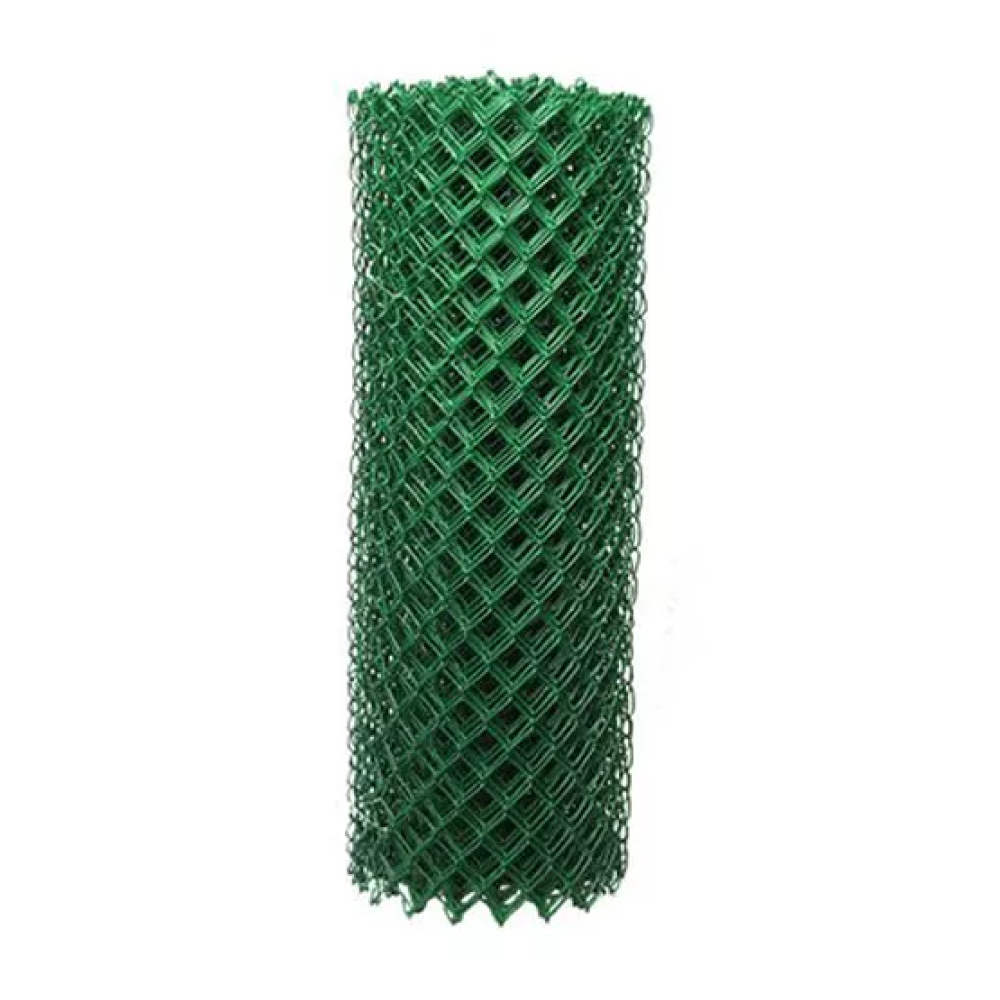

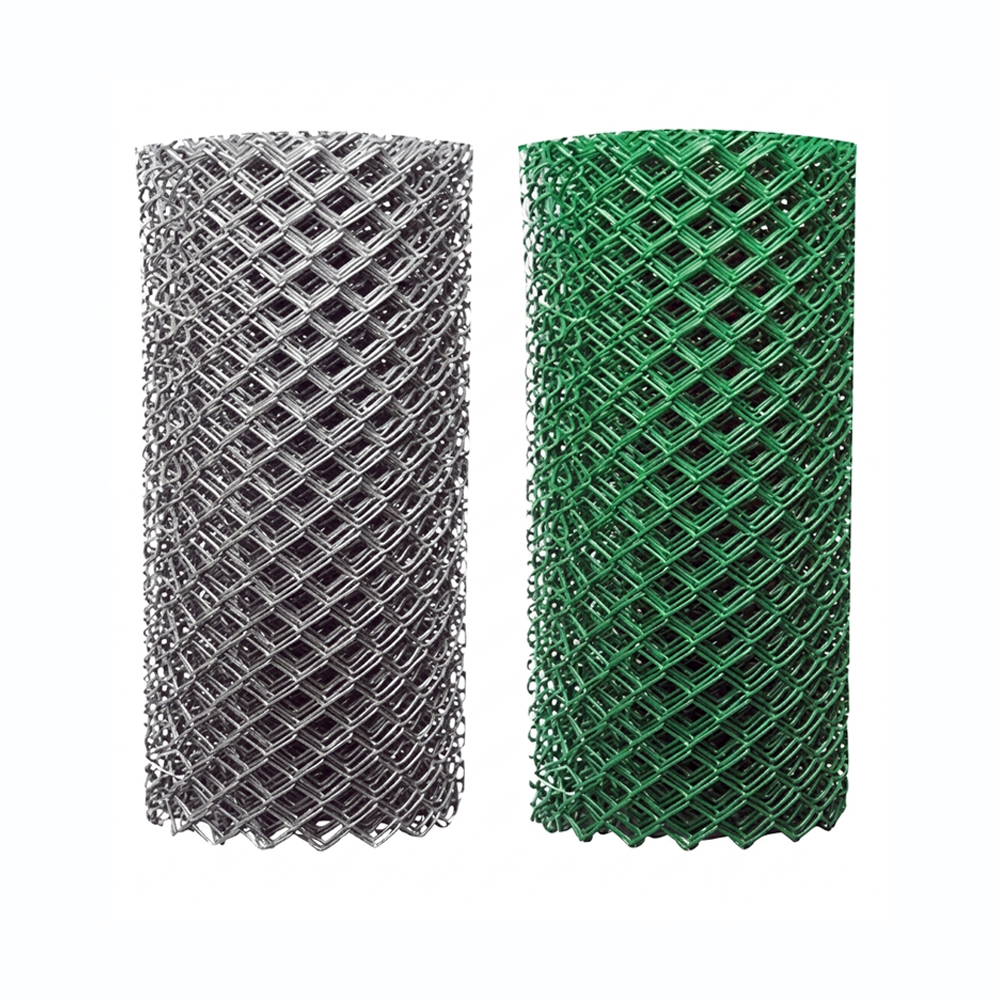

CHAINLINK FENCE
| Material: | Hot Dip Galvanized Steel Wires/ PVC Coated |
|---|---|
| Wire Dia: | 1.40 - 4.50 mm |
| Tensile Strength: | 350 - 650 N/MPa (Core wire) |
| Mesh Size: | 1 x 1 inch up to 4 x 4 inch |
| Height & Length: | Height 4 to 12 Feet & Length 50 to 100 Feet |
| Standards: | BS EN 10223 - 2 | ASTM A392 | A817-03 |
| Area of use: | Industrial and Security Fencing |
